If you are looking for a great way to add to big interest and function to your home landscape, make this the year you build your very own pergola.

The timeless look of a pergola compliments any style of landscape. All while adding a whole new level of functionality and dimension to your outdoor space.

Besides their intricate beauty, a pergola provides shade, shelter, and a quiet space for relaxing. It can also be the perfect spot for outdoor entertaining or dining. Even more, they can double as a great space to grow climbing roses, clematis, grapes and more!

But contrary to popular belief, a pergola doesn’t have to cost a fortune. Nor does building one require massive DIY skills. In fact, creating your own incredibly strong and beautiful pergola can be done in a day or a single weekend. And all for less than you think!

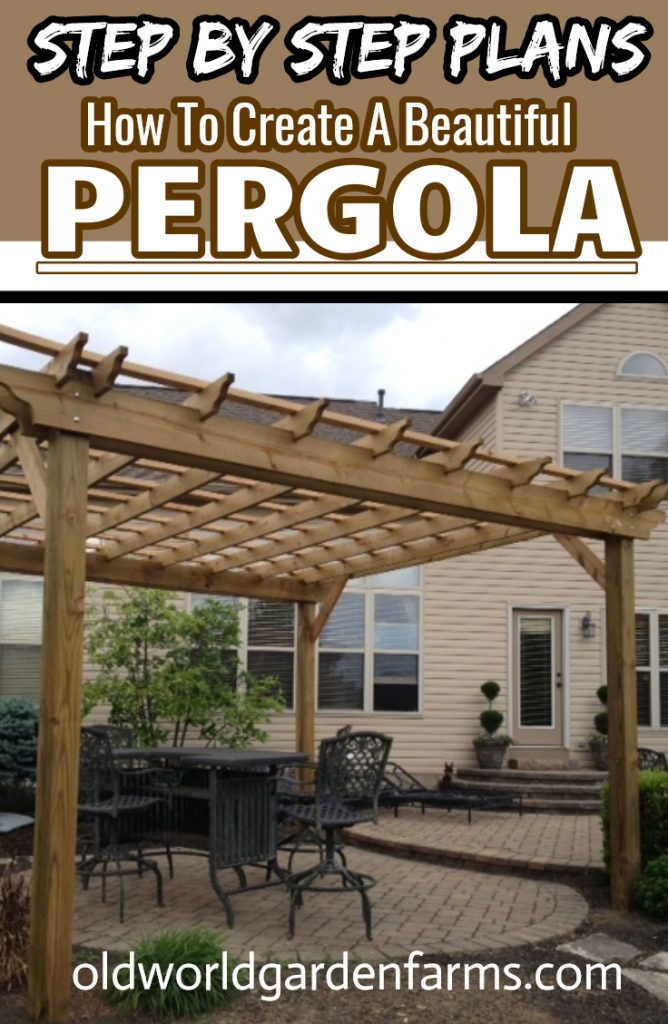

How To Build A Pergola

How To Build Your Own Pergola With Ease

Purchasing a pergola can be costly for sure. Some top end units run upwards of $3,000 to $5,0000 or more. And let’s face it, the flimsy “big-box” store versions made from lightweight resin, metal or plastic simply don’t hold up over time!

That is exactly why we chose to build our own pergola some 9 years ago. And in the process, found out that with a simple plan and material list and a few basic tools, we could create an attractive, strong, and durable pergola – all for a fraction of the cost!

barn pergola

In fact, we built our very first 10 x 10 pergola at the farm for just $150 in lumber. And it still looks as good today as it did back in 2011!

How To Build Your Pergola – The Simple Steps To Success

Over the years, we ended up creating quite a few more pergolas for friends, neighbors and family. Below, we share the simple secrets and tips we have learned over the years to create a beautiful structure that lasts. All of course, with keeping an eye on the budget!

Here is a look below at our biggest keys to success, step by step:

#1 Choosing The Right Lumber

Building a strong, attractive pergola all starts with choosing the right lumber. One thing we have learned is that 4″ x 4″ posts are simply not strong enough to hold up over time. Nor is wood that is 1″ inch thick or less for the top of the structure.

build a pergola

We use only 6″ x 6″ treated posts, and 2x treated lumber for building our pergolas. Although there are thinner and less costly options, the thickness of 2x lumber gives the piece massive long-term strength and durability.

As for what type of wood to use, we have found treated lumber to be the most economical and durable choice. By far! Cedar is an option, but the cost of cedar is astronomical. And in many cases, cedar will still warp and twist.

Treated lumber has come a long way in the past few years. It’s also extremely versatile. It can be left to weather to a natural grey patina, or painted or stained to match existing colors. And it builds one beautiful, strong and affordable pergola!

how to build a pergola

What Does It Cost To Build Your Own Pergola

As for approximate costs, it all depends where you live of course for the cost of lumber and supplies. With that said, on average, a 10′ x 10′ can be built for a few hundred dollars, while sizes up to 16 x 16” can be built for about $350 to $400. That is a huge savings for a structure that will last 10 years or more! (See : Old World Garden Step By Step Pergola Plans – Includes Material List Too!)

Building A Pergola – How It All Comes Together

A pergola is made up of 4 distinct parts: (4) posts, (4) header boards, purlins (the main crossing boards), and the top stringer boards. The number of purlins and top stringer boards will depend on how large of a structure you build, and how much shade you would like it to have.

inexpensive pergola

Starting with our material list, we always cut out all of the pieces first From there, we move on to assembly. It makes the process go smooth, and allows for better and faster assembly if the parts are all cut first.

Posts :

We use only 6 x 6 treated posts for strength and durability. Be sure to select the straightest posts in the pile at the lumber yard. It goes a long way in making the pergola easy to level and assemble.

The header boards are the double set of boards that attach to each side of the post. We secure ours with (2) 10″ bolts at each post. It takes a total of 8 bolts to attach all 4 header boards. With a basic jigsaw, decorative cuts can easily be cut into the ends.

We always use 2 x 8″ or 2 x 10″ boards for the header boards. They add strength and a beefy look to the finished pergola. You need a total of 4 header boards for a four post pergola.

Purlins

The purlins are the main crossing boards of a pergola. We use 2 x 6″ lumber for the purlins. This makes a huge difference! Many store-bought kits or commercial units skimp and use smaller boards. But 2 x 6″ boards add big strength to the piece.

To make the pergolas strong, we cut two notches that are 2″ deep on each end of the purlin with a jig saw. This is so they can fit down onto the header boards. It not only gives a beautiful finished look to the piece, but also eliminates the need for costly and unsightly hardware used to attach boards together. Again, the jigsaw can also be used to create decorative cuts on the end with ease.

build a pergola

Stringer Boards

Finally, for the top stringer boards, we use 2 x 4″ lumber and lay it flat on top of the purlins. Next, we screw them down into the purlins with 3″ screws. It creates a solid piece that won’t curve, warp or bend.

Putting It All Together

Once the pergola pieces are all cut, it is time to assemble. At this point, it is always a great idea to have a few extra hands around to help it go smoothly.

We have found it’s best to assemble the two posts and header boards on the ground. You can drill them out all at once, and put in the bolts. This way, each side of the pergola is complete

Once the posts are set, it is easy to slide on the purlins over the double header boards with the notches and space out to your desired location. Finally, the top stringer boards go on, and screws are driven down into the purlins to lock it all together.

It is a system that has worked like a charm for long term strength and durability. We love getting photos from all over the country from those using the plans to build their own. It really is an easy project to complete.

Securing The Pergola

The last secret is also one of the most important – and that is to be sure to secure the pergola firmly.

If you have an existing concrete patio, you can use plate anchors to secure each of the four 6 x 6″ post to the concrete. These anchors are available at most home improvement and hardware stores for about $25 to $30 each. But before fixing the plate anchors, it is important to clean your concrete patio to remove any grime/ dirt for good contact and adhesion.

For non-concrete applications, it is best to use longer posts and bury for strength. Always, of course, check with local utilities before digging to eliminate the threat of hitting buried power, gas or sewer lines.

The important thing is to definitely secure it!  If not, all it takes is one big windstorm to turn your beautiful little paradise into a pile of toothpicks!

concrete anchors

Here is to building your own pergola this year and adding big interest to your landscape! You can check out all of our DIY plans here on our DIY Plans Page. – Jim and Mary

Old World Garden Farms

As always, feel free to email us at [email protected] with comments, questions, or to simply say hello! To receive our 3 Home, Garden, Recipe and Simple Life articles each week, sign up for our free email list that is located in the middle of this article. This article may contain affiliate links.

Sours: https://oldworldgardenfarms.com/2020/02/27/build-a-pergola-plans/

10x16 Pergola Building Plans Recipes

10X16 PERGOLA PLANS FREE - PDF DOWNLOAD | HOWTOSPECIALIST ...
10x16-pergola-plans-free-pdf-download-howtospecialist image

2020-04-10  · This step by step diy woodworking project is about 10x16 free standing pergola plans. This rectangular wood pergola has a modern design and it is budget friendly, so you can save a ton on money by choosing to make this on your own. This pergola is easy to build …
From howtospecialist.com
Reviews 2
Estimated Reading Time 6 mins
See details »


10X16 PERGOLA PLANS FREE - YOUTUBE
10x16-pergola-plans-free-youtube image

2018-07-03  · http://myoutdoorplans.com/pergola/10x16-pergola-plans/If you need a small rectangular pergola for your backyard, this project will help you get the job done ...
From youtube.com
Author MyOutdoorPlans
Views 3.8K
See details »


10X16 PERGOLA PLANS | MYOUTDOORPLANS | FREE WOODWORKING ...
10x16-pergola-plans-myoutdoorplans-free-woodworking image

This step by step diy project is about 10×16 pergola plans. I have designed this rectangular pergola, after I got a request from a reader. This pergola features a minimalist but stylish design, so it can match the look of any property. Take a look over the rest of my woodworking plans, if you want to get more building …
From myoutdoorplans.com
See details »


12X16 PERGOLA PLANS FREE - PDF DOWNLOAD | HOWTOSPECIALIST ...

This step by step diy woodworking project is about 12x16 free standing pergola plans. This rectangular wood pergola has a modern design and it is budget friendly, so you can save a ton on money by choosing to make this on your own. This pergola is easy to build and it features a sturdy structure. Remember that you need to read the local ...
From howtospecialist.com
Estimated Reading Time 5 mins
See details »


MODERN PERGOLA | 10X16 BREEZE PERGOLA - OUTDOOR LIVING TODAY

2015-12-22  · Breeze Pergola | 10x16 quantity. Add to cart. Description Reviews Features Panels Brackets Shipping Videos Pergola Kit | 10x16. Our 5 star rated 10×16 modern pergola kit has an open-air design that can add charm and functionality to any outdoor living space. Constructed from sustainably harvested Western Red Cedar. Our pergola assembles using only basic tools such as a screw gun, …
From outdoorlivingtoday.com
Estimated Reading Time 7 mins
See details »


PERGOLA PLANS • INSTEADING

2020-12-17  · Build a pergola in a weekend with these plans from Better Homes And Gardens. At the end of the plans are some instructions for pergola planters if you want a bit of greenery. Find plans at Better Homes And Gardens. Traditional Pergola Plans. Size: 8′ x 8′ Build Time: One weekend Special Tools: Table saw. If you’re looking for a pergola that allows a bit of sunlight to peek through while ...
From insteading.com
Estimated Reading Time 7 mins
See details »


PERGOLA PLANS (FREE) HOW-TO CONSTRUCTION PROJECTS

Having pergola plans can save allot of time and eliminate guess work. The list below contains several plans for different designs and sizes. Most of the plans are simple to follow, contains a PDF to download, a material list, and a shopping list to give you an idea or estimate of the price before you start building. Pergola Plans. How to Build a Pergola: Simple Design: Free Plans. Here is a ...
From construct101.com
Estimated Reading Time 2 mins
See details »


10X16 PERGOLA PLANS - FREE PDF DOWNLOAD | HOWTOSPECIALIST ...

Aug 8, 2020 - This step by step diy woodworking project is about 10x16 free standing pergola plans. This rectangular wood pergola has a modern design and it is budget friendly, so you can save a ton on money by choosing to make this on your own. Aug 8, 2020 - This step by step diy woodworking project is about 10x16 free standing pergola plans. This rectangular wood pergola has a modern design ...
From pinterest.co.uk
See details »


10X12 PERGOLA PLANS - FREE GARDEN PLANS - HOW TO BUILD ...

2019-02-06  · STEP 1: Building the base of the pergola. The first step of the garden project is to select the location for the pergola. Make sure the ground is level and then layout the pergola posts with batter boards and string. Measure the diagonals and apply the 3-4-5 rule to the corners, to make sure the corners are square.
From gardenplansfree.com
See details »


OZCO PROJECT 10X16 VINEYARD PERGOLA - #336 BY OZCO ...

2015-03-20  · Project 336 (10x16) step 3 DIY Vineyard Pergola Beam & Support for dimensional details, see Overview page V2.00 - Installation Instructions, Specifications and Project Plans are …
From issuu.com
See details »


10X16 PERGOLA PLANS FREE - PDF DOWNLOAD | HOWTOSPECIALIST ...

May 24, 2020 - This step by step diy woodworking project is about 10x16 free standing pergola plans. This rectangular wood pergola has a modern design and it is budget friendly, so you can save a ton on money by choosing to make this on your own. May 24, 2020 - This step by step diy woodworking project is about 10x16 free standing pergola plans. This rectangular wood pergola has a modern ...
From pinterest.ca
See details »


SHOP PERGOLA PROJECTS | OZCO BUILDING PRODUCTS

Kit 396. Ironwood Two Tier Pergola - Project #396. by OZCO Building Products. $2,223.11. How to Build a Pergola. The fastest and easiest way to build a pergola is to use a project plan from the OZCO Project Library. Although the project designs are ready-made, there are a still variety of project styles and sizes that allow for some customization.
From diyhomecenter.com
See details »


10 MODERN PERGOLA DESIGNS IDEAS AND PLANS FOR SMALL ...

2018-11-16  · Wisteria vines need a very strong structure to climb on, such as a pergola. Hence, plan with care and make sure the structure build with hefty materials. Wisteria shrubs provide colorful elements, gorgeous flowers, and good scent to your pergola. If you’re trying to find a way to make a backyard with functional and decorative appeal, a pergola can be the best solution. Fortunately, there …
From diycorners.com
See details »


51 DIY PERGOLA PLANS & IDEAS YOU CAN BUILD IN YOUR GARDEN ...

These plans are meant for building a large pergola. This is going to cover more than your average size deck. If you have a place for a large picnic area or even a really large sitting area then this might be the size pergola you’ve been looking for. The plans are detailed so that should help make this project a little easier. Build This Pergola › 21. The Vine Covered Pergola. This pergola ...
From morningchores.com
See details »


10X16 PERGOLA PLANS | ETSY

10x16 Free Standing Pergola - DIY Digital Pergola Plans. HowToSpecialist. 4.5 out of 5 stars. (14) $7.99. Favorite. Add to.
From etsy.com
See details »


10' X 16' PERGOLAS | PERGOLAS BY SIZE | GAZEBOCREATIONS.COM

Customer Rating of 10 x 10 Cedar Pergola. By apranger8815 from 7081 Brandt Rd Carroll, Ohio 43112. Very satisfied with Pergola aesthetics. Although concerned about surface cracks in a couple of the corner posts. Could have use at least 50 more of the longer screws …
From gazebocreations.com
See details »


SIMPLE DIY PERGOLA PLANS | FREE PDF DOWNLOAD - CONSTRUCT101

Build your own pergola with these simple to follow DIY pergola plans. Plans include step-by-step illustrations, shopping list, and cutting list. Building a pergola is a great project if you want to add a focal point to your backyard. Add lattice and grow some climbing plants or vines to form your special retreat.
From construct101.com
See details »


17 FREE PERGOLA PLANS YOU CAN DIY TODAY - THE SPRUCE

2021-02-22  · This free pergola plan will build you a 10x10 pergola that takes surprisingly few materials to build. Diagrams, building instructions, materials list, tools list, and tips are all included in this free pergola plan. Free Pergola Plan from How to Specialist. 14 of 17. Free Standing Pergola Plan . Teeraphon Phooma / EyeEm / Getty Images Ron Hazelton has a free pergola plan for a free-standing ...
From thespruce.com
See details »


A 10X16 CEDAR SIDED POOL HOUSE WITH ATTACHED PERGOLA IN ...

We sketched a 10x16 pool house design with a delightful kitchen area complete with quality cabinetry and a Bahama serving window. The final design included a storage area, utility room, and the attached pergola for that coveted shade. We were able to match the cedar clapboard siding to the existing siding on Karen’s house. A dormer allows light to infiltrate the kitchen area. Baystate ...
From outdoorpersonia.com
See details »


10X16 PERGOLA PLANS FREE - PDF DOWNLOAD | HOWTOSPECIALIST ...

Apr 14, 2020 - This step by step diy woodworking project is about 10x16 free standing pergola plans. This rectangular wood pergola has a modern design and it is budget friendly, so you can save a ton on money by choosing to make this on your own. Apr 14, 2020 - This step by step diy woodworking project is about 10x16 free standing pergola plans. This rectangular wood pergola has a modern ...
From pinterest.com.au
See details »


THIS STEP BY STEP DIY PROJECT IS ABOUT 10X16 PERGOLA PLANS ...

When autocomplete results are available use up and down arrows to review and enter to select. Touch device users, explore by touch or with swipe gestures.
From pinterest.co.uk
See details »


86 PERGOLA DIY PLANS | CUT THE WOOD

Transform your regular backyard into a lovely oasis with any of these DIY pergola plans. We have 86 of the most popular pergola DIY plans listed here for you. Choose the one that will fit your needs and according to the style or lock that you wish to achieve. If you are new to woodworking and you are also new to using power tools then the best choice would be a simple pergola plan. 1) A Simple ...
From cutthewood.com
See details »


10X16 PERGOLA PLANS FREE - PDF DOWNLOAD | HOWTOSPECIALIST ...

May 4, 2021 - This step by step diy woodworking project is about 10x16 free standing pergola plans. This rectangular wood pergola has a modern design and it is budget friendly, so you can save a ton on money by choosing to make this on your own. Pinterest. Today. Explore. When autocomplete results are available use up and down arrows to review and enter to select. Touch device users, explore ...
From pinterest.nz
See details »


BUILDING A 10X16 SHED | SHED PLANS, SHED HOUSE PLANS, SHED ...

Apr 28, 2017 - This step by step diy project is about 10x16 gambrel shed plans. This barn shed is a great addition to your backyard, if you need more storage space. The main features of this project are the front double doors, the gambrel roof and the side door with window. Pinterest. Today . Explore. When autocomplete results are available use up and down arrows to review and enter to select ...
From pinterest.ca
See details »


10X16 PERGOLA | ETSY

Check out our 10x16 pergola selection for the very best in unique or custom, handmade pieces from our shops.
From etsy.com
See details »


10X16 PERGOLA PLANS | SHOP THE BIG KAHUNA 10X16 PERGOLA ...

Buy a Big Kahuna 10x16 pergola kit from Pergola Depot! Our quality 10x16 pergola kits are secure and hold up in the harshest elements, aesthetically pleasing, and can be quickly installed. Choose your wood type, freestanding or attached style, post length, trim, end …
From pergoladepot.com
See details »


270 FOR THE HOME IDEAS IN 2021 | HOME, HOME DIY, DECK WITH ...

Aug 10, 2021 - Explore Keasha Willingham's board "For the Home", followed by 223 people on Pinterest. See more ideas about home, home diy, deck with pergola.
From pinterest.com
See details »


OZCO PROJECT #351 - 10X16 PERGOLA WITH TRIPLE SEAM CURVED ...

2018-03-01  · DESCRIPTION. Bill of Material OZCO Project #351 - 10x16 Pergola With Triple Seam Curved Rafters. V2.00 - Installation Instructions, Specifications and Project Plans are …
From issuu.com
See details »


Sours: https://www.tfrecipes.com/10x16-pergola-building-plans/
  1. Turquoise gauges
  2. Archery thumb rings for sale
  3. Horizontal deck rail brackets
  4. Louisiana rv dealers

10×16 Pergola Plans Free – PDF Download

This step by step diy woodworking project is about 10x16 free standing pergola plans. This rectangular wood pergola has a modern design and it is budget friendly, so you can save a ton on money by choosing to make this on your own. This pergola is easy to build and it features a sturdy structure with 6×6 posts. Remember that you need to read the local building codes before starting the construction, so you comply with the legal requirements.

I recommend you to invest in the best materials you could afford. Therefore, you should buy weather-resistant lumber, such as pine or cedar. Always take accurate measurements before adjusting the size of the components at the proper size. Drill pilot holes trough the components before inserting the wood screws, to prevent the wood from splitting.

Made from this plan



10x16 pergola plans



10×16 Pergola Plans – Step by Step

Building a 10x16 pergola

Building a 10×16 pergola



Materials

  • A – 4 pieces of 6×6 lumber – 8′ long POSTS
  • B – 4 piece of 2×10 lumber – 18′ long SUPPORT BEAMS
  • C – 6 pieces of 2×8 lumber – 12′ long SHADE ELEMENTS
  • D – 4 pieces of 6×6 lumber – 45 1/2″ long, 4 pieces – 36 1/4″ long BRACES
  • E – 13 pieces of 2×4 lumber – 18′ long TOPSLATS

Tools

Time









How to build a 10×16 pergola

Cut list 1

Cut list 1

First of all, you need to cut the components for the rectangular pergola. Make sure you measure twice and cut once. Mark the cut lines and get the job done with a miter saw.

Cut list 2

Cut list 2

Cut the rest of the components, as shown in the diagram.

Laying out the pergola - 10x16 pergola

Laying out the pergola – 10×16 pergola

Next, you need to layout the garden free standing pergola. Therefore, use string and batter boards to lay out the location of the posts. Measure the diagonals and make adjustments till they are equal. Moreover, you need to apply the 3-4-5 rule to each of the four corners, so you make sure they are right angled. It is also important to select the location for the shed and to comply to the local codes, of any. Remove the vegetation layer before setting the posts into place.

Fitting the posts

Fitting the posts

You can set the 6×6 posts in concrete or you can pour footings and secure them in place with anchors. Dig 2-3′ deep holes and 14″ in diameter and then compact a layer of gravel to the bottom. Fit the 12″ tubes and set the 6×6 posts into place (or fit the anchors). Use a spirit level to plumb the posts and then secure them into place with temporarily braces. Pour the concrete in the tube forms and let it dry out for several days.

Remember that in my case, the plans are designed considering you will lock the posts using anchors. If you plan to lock the posts in concrete, just add 3′ to all the posts.

Rafters

Rafters

Cut the support beams and the shade elements using the info from the diagram. Mark the cut lines to the beams and get the job done with a circular saw. Smooth the edges with sandpaper. You should notice that the components are made from different materials.

Remember that you can make different style cuts to the ends of the rafters. You cannot be wrong because it’s all up to your skills and imagination.

Fitting the support beams

Fitting the support beams

Align the 2×10 support beams to the posts then clamp them into place tightly. Use a spirit level to plumb the posts and to check if the beams are perfectly horizontal. Drill pilot holes through the 6×6 posts and through the beams. Insert 9″ carriage bolts (two for each joint) and lock everything tightly. Make sure the beams are horizontal and check if the corners are square

Fitting the rafter supports

Fitting the rafter supports

The next step of the project is to build the 2×8 beams to the pergola, as shown in the diagram. Leave 12″ overhangs on both ends of the beams. Clamp the beams to the posts, drill pilot holes and insert 3 1/2″ screws. Fit the middle beams into place with rafter ties. The beams will support the rafters.

Braces

Braces

Use 6×6 lumber for the diagonal braces. Use a miter saw to make 45 degree cuts to both ends of the braces.

Fitting the braces

Fitting the braces

Fit the braces to the pergola, as shown in the diagram. Drill pilot holes through the beams and insert 3 1/2″ screws to lock them into place. Drill pilot holes through the braces and insert 5″ screws into the posts. Before setting the braces, plumb the posts with a spirit level.

Top rafters

Top rafters

Fit the 2×4 shade elements to the top of the square pergola and place them equally spaced. Drill pilot holes and insert screws to lock them tightly to the support beams. Alternatively, you should use rafter ties to lock the components together tightly. You can adjust the size between the shade elements, so you let more or less light to the covered area.

Cut a piece of wood at 9 1/4″ and use  it as spacer, so you can get even gaps between the rafters.

How to build a 10x16 pergola

How to build a 10×16 pergola

This large rectangular pergola is from my point of vie the perfect compromise between area and costs. Therefore, there will be enough shade so you can hang out with family and friends during the weekends, as well as serving coffee on the chill summer mornings.

10x16 Pergola Plans - side view

10×16 Pergola Plans – side view

Last but not least, you need to take care of the finishing touches. Fill the holes with wood putty and then smooth the surface with sandpaper. Apply a few coats of paint or stain to enhance the look of the components and to protect them from the elements. Since you are here, you might as well take a look over the 10×12 pergola plans.

10x16 Pergola Plans

10×16 Pergola Plans

This 10×16 pergola is large enough for creating a really nice relaxation area in the backyard. With so much space you can fit a table, a few chairs and even a sofa. If you like my project, don’t forget to SHARE it on Facebook and Pinterest. See my other pergola plans, as well, for more building inspiration.




Get PDF Plans



Thank you for reading our project about free 10×16 pergola plans and I recommend you to check out the rest of the projects. Don’t forget to LIKE and SHARE our projects with your friends, by using the social media widgets. SUBSCRIBE to be the first that gets our latest projects.

Sours: https://howtospecialist.com/outdoor/pergola/10x16-pergola-plans-free-pdf-download/
How to Build a Pergola

10×16 Pergola Plans


This step by step diy project is about 10×16 pergola plans. I have designed this rectangular pergola, after I got a request from a reader. This pergola features a minimalist but stylish design, so it can match the look of any property. Take a look over the rest of my woodworking plans, if you want to get more building inspiration.

When buying the lumber, you should select the planks with great care, making sure they are straight and without any visible flaws (cracks, knots, twists, decay). Investing in cedar or other weather resistant lumber is a good idea, as it will pay off on the long run. Use a spirit level to plumb and align the components, before inserting the galvanized screws, otherwise the project won’t have a symmetrical look. If you have all the materials and tools required for the project, you could get the job done in about a day.





Projects made from these plans





10×16 Pergola – Free DIY Plans

Building-a-10x16-pergola

Building-a-10×16-pergola







It’s that simple to build your 12×16 storage shed!









How to build a 10×16 pergola plans

Laying-out-the-posts---10x16-pergola

Laying-out-the-posts—10×16-pergola

The first step of the pergola project is to layout the posts. Use batter boards and string to layout the location of the posts. Apply the 3-4-5 rule to every corner and then measure the diagonals to make sure they are perfectly equal. You need to make adjustments until you get the desired result.

Posts

Posts

Dig the holes 3′ deep (or under the front line) and about 12-16″ in diameter. Compact a layer of gravel to the bottom of the holes and then fit the tube forms. Fit the posts, align them and plumb them with a spirit level. Fill the forms with concrete, while the posts are locked into place with temporarily braces. If you use anchors, you need to align and set them into concrete. Fit the posts after the concrete dries, using lag screw.

Smart tip: Read the local building codes, so you dig the holes at the appropriate depth.

Support-beams---pergola

Support-beams—pergola

Use 2×8 lumber for the support beams. Make decorative cuts to both ends of the beams. You can use a large circular item so you can draw the curved lines. Get the job done with a jigsaw and then smooth the edges for a neat result.

Fitting the support beams

Fitting the support beams

Fit the support beams to the top of the posts. Use a spirit level to plumb the support beams and then clamp the beams into place tightly. Drill pilot holes through the beams and through the posts. Insert the 9″ carriage bolts and then tighten the nuts.

Building-the-pergola-rafters

Building-the-pergola-rafters

Use 2×6 lumber for the shade elements. Mark the cut lines and then get the job done with a saw. In addition, you need to make a few 2″ deep notches, so you can fit the shade elements to the support beams. Mark the cut lines on the beams and then use a circular saw to make parallel cuts. Use a chisel to remove the excess and then smooth the recess with sandpaper.

Fitting-the-rafters

Fitting-the-rafters

Fit the shade elements to the support beams. Place the shade elements equally spaced and then lock them into place with rafter ties. Alternatively, you could drill pilot holes through the shade elements (above the notches) and insert 5 1/2″ screws so you can lock them into place tightly.

Building the braces

Building the braces

Use 6×6 lumber for the braces. As you can easily see in the diagram, you need to cut out a decorative curve inside the braces, so you get a professional result.

Fitting the braces

Fitting the braces

Fit the braces to the pergola and make sure the corners are square. Drill pilot holes and insert 5 1/2″ screws to lock them into place tightly.

Fitting the top slats

Fitting the top slats

Fit the 1×2 slats to the top of the pergola. Place these slats equally spaced for a professional result. Center the slats to the rafters and then drill pilot holes, before inserting the 1 5/8″ screws.

10x16 pergola plans - side view

10×16 pergola plans – side view

Last but not least, you need to take care of the finishing touches. Therefore, fill the holes with wood putty and then smooth the surface with 120-220 grit sandpaper. You can also fit braces, if you live in a windy area. Apply a few coats of paint or stain over the components, to enhance the look of the pergola and to protect the components from decay.

10x16 pergola plans

10×16 pergola plans

This rectangular pergola will add value and an exquisite look to your property with a small investment.

10x16 pergola plans - top view

10×16 pergola plans – top view

This pergola provides plenty of space for setting several chairs, an outdoor sofa and an outdoor table. You can even cover the pergola of you want to obtain even more shade, especially during the hot summer days. Check out the rest of my pergola plans, as I have many designed and sizes you can choose from.





This woodworking project was about 10×16 pergola plans free. If you want to see more outdoor plans, check out the rest of our step by step projects and follow the instructions to obtain a professional result.












Sours: https://myoutdoorplans.com/pergola/10x16-pergola-plans/

10x16 pergola plans

Rechercher: 10x16 pergola kit

Gazebos Pergolas and Solariums - The Seven Trust Canada

Shop our selection of Pergolas in the section of Gazebos Pergolas and Solariums in the Outdoors Wall Mount Pergola Kit with Shade Sail for 6x6 Wood. $1089.

How To Build A Pergola With Ease - The Simple Secrets To

27 Feb 2020 We built our barn pergola from the very same plans and method we used for our standard pergola. We just left off one side and attached it to the

Project Plans - OZCO Building Products - Greater Projects

Project Plans FREE OZCO Project Arbor / Pergola Shade Patio Structure 315 OZCO Project 351 - 10x16 Pergola With Triple Seam Curved Rafters

10x16 Pergola Plans Free - YouTube

3 Jul 2018 myoutdoorplans.com/pergola/10x16-pergola-plans/ If you need a small rectangular pergola for your backyard this project will help you

Sojag Yamba 10x16 Pergola Kit w/ Cover 500-9166446

This Sojag Yamba 10x16 Pergola Kit with cover adds a lot of beauty to your yard and they also add plenty of interest to an outdoor space. FREE Shipping

10' X 16' Vinyl Pergola Kit Plasticlumberyard.com

10' x 16' Vinyl Pergola Kit. Superior strength Superior durability.Added home value. Easy to accessorize. Easy to assemble. PVC vinyl will stand up to the

10' x 16' Wooden Pergola : Garden & Outdoor - Amazon.com

10' x 16' measured by outside of top area ; Southern Yellow Pine; Stained to a cedar color; Ships in Kit Form; Comes with instructions hardware and anchors.

Pergola Kits USA.com

The leader in ready-to-assemble pergola kits shipped direct to you. Cedar redwood and fiberglass pergola kits both free-standing and attached.

Pergolas Hayneedle

Results 1 - 40 of 40 Shop our best selection of Pergolas to reflect your style and inspire your outdoor space. Find the perfect patio Outdoor Living Today Breeze 10 x 16 ft. Pergola Modern Pergola Kits Traditional 16 x 16 ft. Attached Vinyl

Pergola Kits Toja Grid

Keep it simple with our modern. DIY pergola kits that will allow you to create your own backyard oasis in no time.

Pergolas and Pergola Kits - Sears

Items 1 - 50 of 74 Sears has pergolas for a quaint garden retreat. Give your backyard a shady quiet spot with a DIY pergola kit.

12x16 pergola kit

"Custom-built 12x16 pergola built on a small budget. We found a . Covered Pergola Plans 12x24 and 39; Build DIY Outside Patio Wood Design Co.

17 Free Pergola Plans You Can DIY Today - The Spruce

28 Sep 2020 Free pergola plans for both free-standing and deck pergolas that include building instructions photos videos and diagrams to help you

60 Pergola Plans ideas - Pinterest

This step by step diy woodworking project is about 10x16 free standing pergola plans. This rectangular wood pergola has a modern design and it is budget

Attached 10' x 16' Pergola Kit - White Vinyl w/ Aluminum

Attached 10' x 16' Pergola Kit - White Vinyl w/ Aluminum Frame - 10' x 16' Pergolas Attached Pergolas > 10' Wide Attached > Attached 10' x 16' Pergolas.

10x16 Pergola Plans MyOutdoorPlans Free - Pinterest

Jun 30 2020 - This step by step diy project is about 10x16 pergola plans. I have designed this rectangular pergola after I got a request from a reader.

10 x 16 - Pergolas - Shade Structures - The Seven Trust

Get free shipping on qualified 10 x 16 Pergolas or Buy Online Pick Up in Store today in the Storage and Organization Department.

10x16 Pergola Plans - Free PDF Download HowToSpecialist

This step by step diy woodworking project is about 10x16 free standing pergola plans. This rectangular wood pergola has a modern design and it is budget

Retractable Pergola Canopy Kit Order a Retractable Canopy

Buy a Big Kahuna 10x16 pergola kit from Pergola Depot Our quality 10x16 pergola kits are secure and hold up in the harshest elements aesthetically pleasing

10 x 16 Kit — Pergolas

We know assembling your own pergola might sound like a daunting task but with our easy to follow instructions and unique interlocking design 10 x 16 Kit.

10x16 Pergola Plans Shop the Big Kahuna 10x16 Pergola

Buy a Big Kahuna 10x16 pergola kit from Pergola Depot Our quality 10x16 pergola kits are secure and hold up in the harshest elements aesthetically pleasing

Outdoor Living Today Breeze 10 x 16 ft. Pergola - Walmart

Outdoor Living Today Breeze 10 x 16 ft. Pergola. N. Off-White. 30 days from delivery Walmart Protection Plans cover the total cost of repair or replacement

2020 Cost of to Build a Pergola Installation and Material Prices

26 Aug 2020 How much does a do-it-yourself pergola kit cost? Smaller free-standing vinyl DIY patio cover kits can cost as low as $600 although the average

Pergola Price Cost of a Pergola: Pressure-Treated Wood

10X16 pressure-treated wood pergola: around $2000; 16X32 pressure-treated wood pergola: around $5000. Cost of a Cedar Pergola. cedar wood pergola price.

All Outdoor Structures – The Better Backyard

Results 1 - 24 of 172 Tan. Grey. Size: 8'x12'. 8'x16'. 10'x12'. 10'x16'. Yardistry 10 x 10 Meridian Gazebo Kit 100% Cedar with Aluminum Roof Gazebo Yardistry

Modern Pergola 10x16 Breeze Pergola - Outdoor Living Today

Pergola Kit 10x16. Our 5 star rated 10×16 modern pergola kit has an open-air design that can add charm and functionality to any outdoor living space.

Pergolas Costco

Shop patio covers and pergolas on Costco.com. Our collection includes wooden or vinyl pergolas louvered pergolas covered pergolas and more

10x16 Pergola Plans MyOutdoorPlans Free Woodworking

This step by step diy project is about 10x16 pergola plans. I have designed this rectangular pergola after I got a request from a reader.

Pergolas at Menards

Shop Menards for pergolas that are perfect shade filters for above patios or hot tubs and will add New England Arbors 12' x 12' Elysium Louvered Pergola Kit.

Deck Pro Pictures - Cedar - 10x16 Pergola - Pinterest

Deck Pro Pictures - Cedar - 10x16 Pergola.

Pergolas at Lowes.com

Shop pergolas and a variety of outdoors products online at Lowes.com. Modern Pergola Kits 16-ft W x 12-ft L x 10-ft White Vinyl Freestanding Pergola. Item

Toja Grid 10x16- Double Pergola Kit in the Pergola Parts

Shop toja grid 10x16- double pergola kit in the pergola parts and accessories section of Lowes.com.

UPDATED: The 7 Best Pergola Kits of 2020 Gazebo.com

10x16 wood pergola; Cedar stain. custom pergola kit. Traditional Vinyl Pergola. This traditional vinyl pergolas have the timeless design of a backyard shade

10' x 16' Pergolas Pergolas by Size GazeboCreations.com

Shop GazeboCreations for 10' x 16' Pergolas Viewing Pergolas by Size. Researched several Pergola kits and decided Fifth Room had the best especially

OZCO Project 336 - DIY Vineyard Pergola Overview 10x16

00 - Installation Instructions Specifi ions and Project Plans are effective 8/31/2016 . This information is updated periodically and should not be relied upon after

Toja Grid Double Pergola Kit with 2 Shade Sails for 4x4 Wood

Shop Toja Grid Double Pergola Kit with 2 Shade Sails for 4x4 Wood - 10-ft x 16-ft at Lowe's Canada online store. Find Pergolas at lowest price guarantee.

Yamba Pergola 10x16 ft. - ShelterLogic

Want to give your backyard a contemporary look and style? The durable fashionable Yamba pergola from SOJAG will do that and can serve a variety of

Simple 10x16 Rectangular Gazebo Plans MyOutdoorPlans

Simple 10x16 Rectangular Gazebo Plans MyOutdoorPlans Free Woodworking Plans and Projects DIY Shed Wooden Playhouse Pergola Bbq. August 2019

10x16 Wood Pergola Kit DIY pergola kits at Alan's Factory

This 10x16 wood pergola kit is an Amish built do it yourself pressure treated wood pergola kits. They are precut with all of the hardware included for an easy fast

BZ1016 Cedar Breeze Pergola Kit Walmart Canada

Buy BZ1016 Cedar Breeze Pergola Kit from Walmart Canada. The archways of our 10x16 Breeze Pergola create an enduring classical style and unlike

Pergola 10 X 16 Wayfair

Shop Wayfair for the best pergola 10 x 16. Enjoy Free Shipping on Cedar 10 Ft. W x 10 Ft. D Solid Wood Pergola with Mounting Kit. by Backyard Discovery.

PRE Post:shhets composites pour les terrasses
NEXT Post:comment éliminer les algues du pont composite

Sours: https://zrobiecilogo.pl/fg90/5254-2q1708e8smvz.html
10x16 Pergola Plans Free

10x16 Free Standing Pergola Plans

This step by step diy woodworking project is about 10x16 standing pergola plans. This rectangular wood pergola has a modern design and it is budget friendly, so you can save a ton on money by choosing to make this on your own. This pergola is easy to build and it features a sturdy structure with 6×6 posts. 1 PDF file with full plans, full cut and shopping lists!

Remember that you need to read the local building codes before starting the construction, so you comply with the legal requirements. This pergola is made out of wood and it features a simple design. This garden pergola will create some shade to your backyard. This pergola makes for the perfect spot for a table and a few chairs.

Included in the plans:

  • *Step by step diagrams
  • *Step by step Instructions
  • *Full Cut list
  • *Full Shopping list
  • *Full Tool List

Measurements are in imperial. The plans are for personal use only. HowToSpecialist or the its legal owners won't be liable for any loss, damage or injury arising from the use of information on this plan. It is your responsibility to make adjustments to the plans, to comply with your local building codes.

Sours: https://app.gumroad.com/l/yltQn

Similar news:

.



814 815 816 817 818
